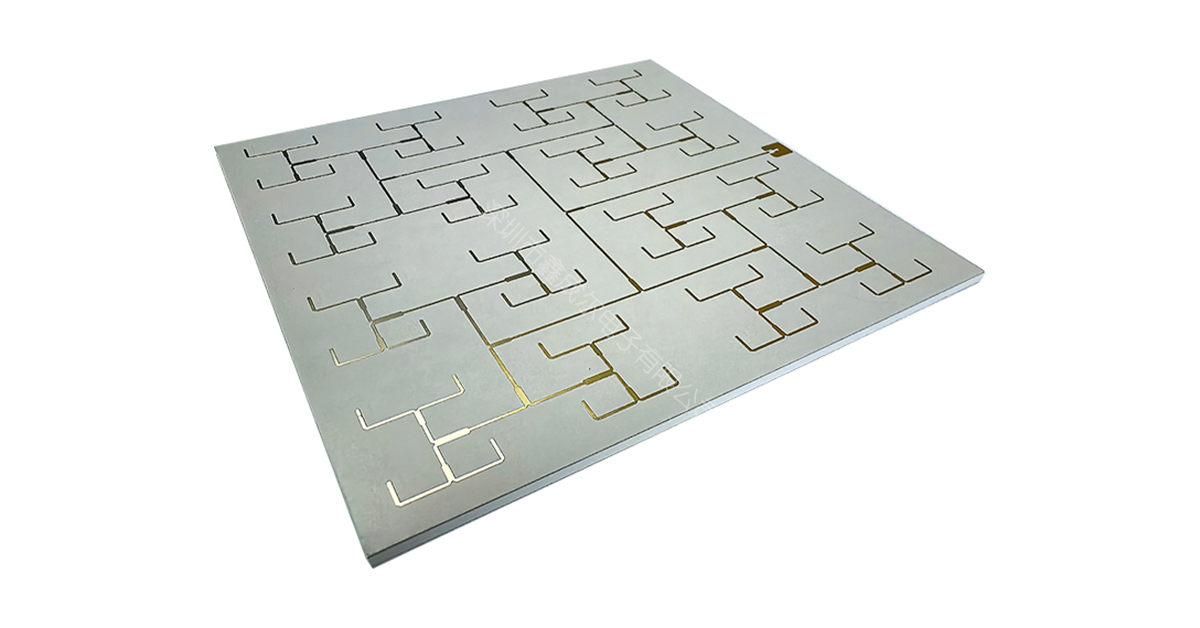

During the transition of communication technology from 4G to 5G and beyond, RF front-end design, particularly for power amplifiers, faces increasingly stringent size and cost challenges. Designers urgently need a material solution that can significantly reduce circuit size and lower overall cost while ensuring excellent high-frequency performance. Rogers Corporation’s RO4360G2 high-frequency PCB laminate material is born precisely to address this core need.
I. Core Advantage: The Miniaturization Revolution Driven by High Dielectric Constant (Dk)
The most distinctive feature of RO4360G2 material is its nominal dielectric constant as high as 6.15 (measured at 10 GHz). This “high Dk” characteristic is the physical foundation for its circuit miniaturization capability. According to electromagnetic theory, at the same operating frequency, the wavelength of electromagnetic waves propagating in a medium with a higher dielectric constant shortens accordingly. This means the physical resonant structure or transmission line length required to achieve the same function can be shorter. In engineering practice, using RO4360G2 can significantly reduce the size of RF circuit boards by 20% to 30%.
This characteristic is crucial for devices like base station power amplifiers and low-noise amplifiers that need to integrate more functions within limited space. It not only helps equipment manufacturers tackle the challenge of restricted installation space on base station towers but also provides more possibilities for antenna design within increasingly compact mobile devices.
II. Performance Foundation: Excellent Comprehensive Electrical and Thermal Characteristics
In addition to the high dielectric constant, RO4360G2 possesses a series of key performance attributes ensuring its stable and reliable operation in demanding applications:
- Low Loss and High Stability: At 10 GHz, its dissipation factor (Df) is as low as 0.0038, ensuring energy loss during high-frequency signal transmission is kept to a minimum. This is crucial for improving power amplifier efficiency and reducing system thermal dissipation. Simultaneously, as a thermoset material filled with hydrocarbon ceramics, it exhibits outstanding dielectric constant stability over a wide temperature range, guaranteeing consistent and reliable performance.
- Exceptional Heat Resistance and Thermal Management: The RO4360G2 material is specifically designed to achieve certification for higher maximum operating temperatures. Its glass transition temperature (Tg) is well above 280°C, and it boasts a thermal conductivity as high as 0.75 W/(m·K) to 0.81 W/(m·K). Good thermal conductivity helps rapidly dissipate heat generated by power devices, thereby lowering the system’s operating temperature and enhancing long-term reliability.
- Enhanced Process Compatibility and Reliability: Despite its outstanding performance, the processing of RO4360G2 material is similar to that of common FR-4 laminates and is compatible with automated surface mount processes. This greatly reduces the manufacturing barriers and costs for high-frequency circuit boards. Its extremely low Z-axis coefficient of thermal expansion improves the reliability of plated through-holes during temperature cycling, making it an ideal choice for constructing complex multilayer RF circuit structures.
III. Core Application Areas: Empowering Next-Generation Communication and RF Systems
Thanks to the aforementioned characteristics, Rogers RO4360G2 has become a core material solution in several high-performance RF fields.
- Wireless Communication Infrastructure: It is an ideal substrate material for RF components like power amplifiers, low-noise amplifiers, combiners, and splitters in 4G and next-generation communication platforms. Its miniaturization advantage directly contributes to the development of base station equipment towards lighter and more compact directions.
- Aerospace and Defense: In these fields where requirements for performance, stability, and space are extremely stringent, RO4360G2, with its high reliability, has become the ideal material sought by designers and can even serve as a high-performance alternative to Low-Temperature Co-fired Ceramic (LTCC).
- Compact Antenna Systems: Its high dielectric constant characteristic is especially suitable for designing miniaturized, highly integrated patch antenna arrays, providing support for various devices requiring built-in multi-antennas (such as IoT terminals, drone communication modules).
IV. Design Considerations and Hybrid Lamination Applications
In practical applications, designers can fully utilize the material flexibility of RO4360G2. In multilayer board design, it can be used in hybrid lamination with dedicated RO4400 series prepregs and other laminates from the RO4000 series that have lower dielectric constants (such as RO4350B). This hybrid lamination design allows engineers to optimize performance for different circuit regions on a single board: using the high-Dk RO4360G2 for RF front-end regions requiring miniaturization, while employing other materials with lower loss and better cost-effectiveness for digital or general RF circuit regions. This achieves the optimal balance of overall performance, size, and cost.
Conclusion
In summary, the Rogers RO4360G2 high-frequency PCB is not merely a new material. It represents a clear pathway to solving the core contradictions in RF systems: achieving multi-dimensional optimization of performance, size, and cost through material innovation. Its unique high dielectric constant, exceptional heat-resistant reliability, and FR-4-like process friendliness make it a key enabling technology driving the development of next-generation compact, high-performance RF equipment in fields like communications and aerospace. For designers pursuing the cutting edge of design, mastering and applying RO4360G2 means grasping an important tool for achieving differentiated innovation in intense technological competition.
