In the pursuit of extreme speed and connectivity today, from the sharp “eyes” of autonomous vehicles to the surging “pulse” of 5G networks, millimeter-wave technology is becoming the core of cutting-edge electronics. Systems operating at 77GHz or even higher frequencies place near-demanding requirements on the printed circuit boards that carry their circuits: extremely low signal loss, excellent temperature stability, and reliable long-term performance. If purely traditional FR-4 material is used, its significant dielectric loss at high frequencies can lead to severe signal attenuation; if entirely top-tier high-frequency laminates are used, costs become difficult to bear. It is precisely within this contradiction that the hybrid technology of Rogers RO3003 series high-frequency material and FR-4 stands out, becoming a “strategic weapon” for engineers to balance high performance and cost-effectiveness.

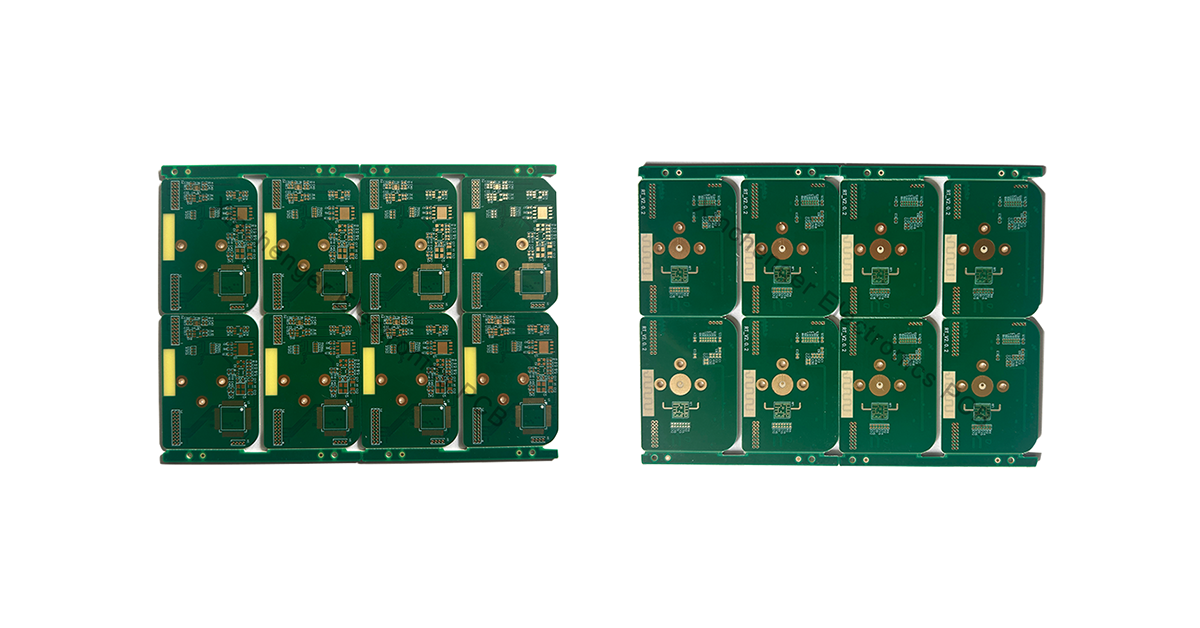

Strong Alliance: Why Choose RO3003 and FR-4 Hybrid?
To understand the value of this hybrid technology, one must first see the “role division” of the two materials.
Rogers RO3003: The Cornerstone of High-Frequency Performance
RO3003 is a ceramic-filled polytetrafluoroethylene laminate whose core value lies in providing a “superhighway” for high-frequency signals. It possesses near-perfect dielectric constant stability (Dk=3.00±0.04), meaning its electrical performance changes minimally across different temperatures and frequencies, which is crucial for millimeter-wave circuits requiring precise impedance control (e.g., 50Ω transmission lines). Simultaneously, its extremely low dissipation factor (Df=0.0010 @10GHz) ensures that in applications like 77GHz automotive radar, precious signal energy is maximized for detection rather than dissipated as heat in the board. Its excellent performance makes it an ideal choice for automotive ADAS, 5G millimeter-wave infrastructure, and similar applications.
FR-4: The Pillar of Cost and Process
FR-4, the most common PCB substrate, is composed of epoxy resin and glass fiber cloth composite. Its advantages lie in unparalleled cost-effectiveness, mature processing technology, and excellent mechanical strength. However, its dielectric constant and dissipation factor deteriorate significantly as frequency increases, making signal integrity difficult to guarantee in the millimeter-wave band. Therefore, in complex systems (like automotive radar modules), FR-4 finds its application in functional circuit parts that are insensitive to high-frequency performance, such as power distribution, low-speed control logic, and sensor interfaces.
The Core Logic of Hybridization lies precisely here: applying expensive RO3003 precisely to core high-frequency signal paths like RF front-ends and antenna feedlines, while using economical and reliable FR-4 to handle the majority of other circuit functions. This “on-demand allocation” strategy can effectively control costs while ensuring the overall millimeter-wave performance of the system. Research indicates that circuit boards designed with such hybrid structures can easily achieve high-frequency signal transmission bandwidths exceeding 50GHz, meeting the demands for single-channel data transmission rates above 100Gb/s.
Bridging the Gap: Key Challenges and Solutions in Hybrid Design
However, integrating two materials with vastly different properties into a single PCB is not a simple physical overlay. The biggest challenge stems from their inherent coefficient of thermal expansion (CTE) mismatch.
RO3003 has low CTE in all three dimensions (X, Y, Z), close to that of copper, whereas FR-4 has a relatively higher CTE. Under the high temperatures of PCB lamination processes and temperature variations during equipment operation, the differing degrees of expansion and contraction between the two materials generate enormous internal stress, easily leading to warping, delamination, and even affecting long-term reliability of the finished PCB.
Overcoming this challenge requires a coordinated approach from three aspects: material selection, stack-up design, and process control.
- Optimize Material Selection: Prioritize considering enhanced models within the RO3003 series optimized for automotive radar, such as RO3003G2. It offers optimized insertion loss performance at 77GHz. For the FR-4 portion, it is essential to select models with a high glass transition temperature (Tg). High Tg means the material remains rigid at higher temperatures, thereby reducing thermal deformation and better matching the dimensional stability of high-frequency materials.
- Adopt Symmetrical Stack-up Design: This is the core layout strategy for stress cancellation. A classic approach is to use a “sandwich” structure, placing the RO3003 material layer in the center of the PCB stack-up, with FR-4 material layers symmetrically laid on both the top and bottom. This symmetrical structure acts like a “balance beam,” allowing stresses generated by different materials to counteract each other in opposite directions, thereby minimizing the risk of warping. During design, care must also be taken to avoid placing large copper planes in asymmetrical positions to prevent exacerbating deformation.
- Rely on Professional Manufacturing Processes: The successful mass production of hybrid PCBs highly depends on the fab’s process capabilities. Professional PCB manufacturers use specialized high-frequency bonding sheets (such as the Rogers RO4450 series) during lamination to bond different materials; their flow and curing characteristics are specially optimized. Simultaneously, strict process control, including precise management of lamination parameters (temperature, pressure, time profile) and potentially the use of pin lamination technology, are key to ensuring interlayer alignment accuracy and bond strength.
Design Empowerment: Maximizing the Potential of Hybrid PCBs
Successful material combinations lay the foundation for excellent design. Routing on hybrid high-frequency PCBs requires adhering to a series of rigorous design guidelines to ensure final performance:
- Impedance Control and Routing: For millimeter-wave transmission lines (typically in forms like grounded coplanar waveguide or microstrip) on the RO3003 layer, strict impedance calculation and simulation are mandatory. Line width, dielectric thickness, and distance to the ground plane must be precisely controlled to maintain a constant characteristic impedance of 50Ω (or other target values); any deviation can cause signal reflection.
- Via Optimization: Minimize the number of vias on high-frequency signal paths whenever possible. When necessary, back-drilling technology should be employed to remove the unused portion of the metal barrel in the via. These excess “stubs” can resonate like antennas, severely degrading high-frequency signal integrity.
- Grounding and Shielding: Deploy dense ground via fences around critical high-frequency traces and components. This not only provides a clear signal return path and suppresses crosstalk but also forms effective electromagnetic shielding to prevent noise interference.
The hybrid technology of Rogers RO3003 and FR-4 represents a sophisticated philosophy in modern high-performance electronic design: not pursuing the extreme of a single metric at all costs, but achieving maximum value from each material in its area of expertise through system-level thinking. It successfully finds a stable fulcrum between the top-tier RF performance required for millimeter-wave circuits and the cost constraints that commercial products must adhere to.
For engineers aiming to enter fields like 77GHz automotive radar, 5G millimeter-wave communication, and high-end test instrumentation, mastering this hybrid technology is no longer a bonus but a key competency for ensuring project success. It requires designers to not only understand the inherent properties of the materials but also to have deep insight into stack-up mechanics, thermal management, and precision manufacturing processes. When these elements are perfectly integrated, a highly integrated, reliably performing, and cost-controlled hybrid high-frequency PCB will truly become a solid bridge connecting reality to the future millimeter-wave world.
