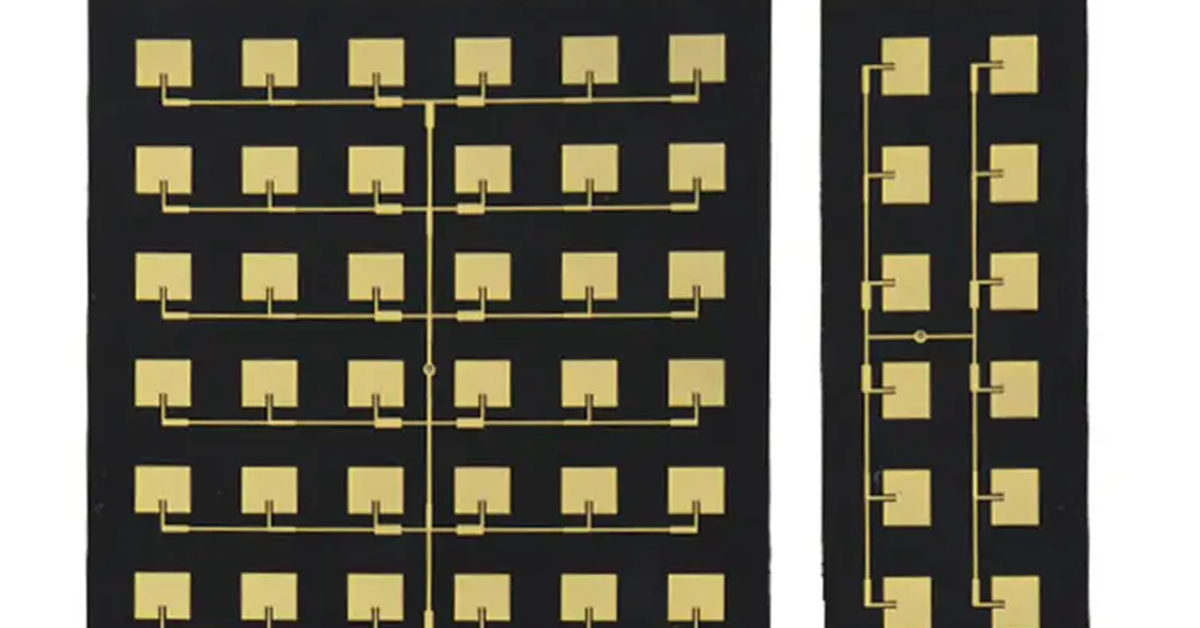

High-frequency PCBs (Printed Circuit Boards) are key components in electronic devices, widely used in fields such as communications, radar, and satellite navigation. With the advancement of high-frequency technology, the complexity and precision of PCB design continue to increase, placing higher demands on their manufacturing processes. In the production of high-frequency PCBs, optical microscopes and electron microscopes, as essential inspection tools, play an indispensable role. These two microscope technologies help high-frequency PCB factories conduct high-precision defect detection, solder joint quality analysis, component inspection, and other tasks, ensuring electrical performance and reliability.
This article will detail the applications, working principles, advantages, and importance of optical microscopes and electron microscopes in high-frequency PCB manufacturing.
- Overview of Optical Microscopes and Electron Microscopes
1.1 Optical Microscopes
An optical microscope is an instrument that magnifies objects to observable sizes using an optical lens system. It utilizes visible light and lenses to magnify and present images of tiny objects to observers through refraction between the object and the light source. Optical microscopes are mainly used for observing surface morphology and are suitable for low-magnification applications, such as inspecting surface solder joints, component placement, and circuit patterns on PCBs.
In high-frequency PCB production, optical microscopes are commonly used to check surface defects, such as whether solder joints are secure, components are correctly placed, or circuits are intact. Due to their simplicity of operation and low cost, optical microscopes are widely used in high-frequency PCB manufacturing.
1.2 Electron Microscopes
An electron microscope uses an electron beam instead of visible light to observe objects. Since the wavelength of electrons is much shorter than that of visible light, electron microscopes offer higher resolution than optical microscopes, even reaching nanometer levels. Electron microscopes are divided into scanning electron microscopes (SEM) and transmission electron microscopes (TEM), with scanning electron microscopes (SEM) being more suitable for high-frequency PCB inspection, mainly for observing PCB surfaces and internal structures.
Electron microscopes can observe details such as solder joints, hole walls, and surface microstructures with extremely high resolution, helping detect micro-defects, hole wall smoothness, and soldering quality. For micro-defects in high-frequency PCBs, electron microscopes provide more detailed and precise information than optical microscopes.
- Working Principles of Optical Microscopes and Electron Microscopes
2.1 Working Principle of Optical Microscopes
Optical microscopes magnify objects using optical lenses and a visible light source. Their working principle is as follows:
Illumination: The object is illuminated by a light source, and light passes through the object’s surface and penetrates it.
Magnification: Through a convex lens system, the light is refracted, focused, and magnified. The magnification depends on the combination of lenses and eyepieces.
Observation: The magnified image is presented to the observer through the eyepiece, who evaluates the object’s structure and morphology based on the image.
Optical microscopes are suitable for inspecting surface soldering quality, component placement, and circuit routing on high-frequency PCBs, typically at low magnifications (e.g., 10x to 1000x).
2.2 Working Principle of Electron Microscopes
Electron microscopes use an electron beam instead of light to observe objects. Their working principle is as follows:
Electron Beam Emission: The electron microscope emits a high-speed electron beam toward the sample surface using an electron gun. The wavelength of the electron beam is shorter than that of light, providing higher resolution.
Scanning and Imaging: The electron beam interacts with the sample surface. In scanning electron microscopes (SEM), the surface is scanned, and secondary electrons are collected to generate an image of the sample surface.
Magnification and Display: By analyzing secondary electron signals through a computer system and converting them into images, electron microscopes can provide images with extremely high resolution, reaching the nanometer level.
Electron microscopes can detect micro-defects in high-frequency PCBs, such as micro-cracks in solder joints, hole wall quality, and internal material structures, providing more precise and detailed inspection data than optical microscopes.
- Applications of Optical Microscopes and Electron Microscopes in High-Frequency PCB Manufacturing
3.1 Solder Joint Quality Inspection
In high-frequency PCB production, soldering quality is critical to electrical performance. Optical microscopes can help inspect surface solder joints for issues such as cold joints, false soldering, or over-soldering, ensuring joints are secure and clear. Meanwhile, electron microscopes can examine the microstructure of solder joints in detail, analyzing soldering quality. This is particularly useful for bottom-side soldered components like BGA (Ball Grid Array) and QFN (Quad Flat No-Lead), as electron microscopes provide detailed internal soldering information, helping identify hidden defects such as voids or poor soldering.
3.2 Component Inspection
High-frequency PCBs often use high-density, miniaturized electronic components that require precise soldering and placement. Optical microscopes help check component positioning, placement accuracy, and potential contact issues or misalignments in solder pins. Electron microscopes can further analyze soldering areas, detecting micro-defects in solder joints to ensure every component is securely connected.
3.3 Layer-to-Layer Connection and Via Quality Inspection
In the multilayer structure of high-frequency PCBs, electrical connections between layers are crucial. Optical microscopes can inspect the quality of surface circuit connections, while electron microscopes examine connections between internal layers, particularly in micro-vias and blind vias. Electron microscopes provide clear images of via wall smoothness, unobstructed pathways, and potential cracks or defects, which are essential for ensuring the stability of multilayer high-frequency PCBs.
3.4 Surface Defect Detection
Surface defects such as scratches, bubbles, or impurities may occur during high-frequency PCB production. Optical microscopes are typically used for preliminary surface defect inspections, such as scratches or stains. Electron microscopes offer higher-resolution surface details, revealing micro-defects like micro-cracks, tiny bubbles, or surface contamination, enabling timely repairs to prevent impacts on electrical performance.
3.5 Via Position Inspection and Microstructure Analysis
The precision of via positions in high-frequency PCBs directly affects electrical performance and signal transmission quality. Optical microscopes help inspect via alignment and aperture dimensions, while electron microscopes provide finer examination of micro-vias, identifying minor deviations in position or issues with internal wall quality to ensure smooth high-frequency signal transmission.
- Advantages of Optical Microscopes and Electron Microscopes
4.1 High Precision and Resolution
Electron microscopes offer nanometer-level resolution, enabling the detection of micro-defects and soldering issues in high-frequency PCBs. In comparison, optical microscopes are suitable for larger-scale surface defect inspections but still provide sufficient resolution to meet basic requirements in high-frequency PCB manufacturing.
4.2 Non-Destructive Testing
Both optical and electron microscopes are non-destructive testing tools that do not cause physical damage to PCBs during inspection, allowing safe and reliable testing without affecting the PCBs.
4.3 Real-Time Detection and Feedback
These microscope systems are often equipped with efficient image processing software, enabling real-time display of inspection results and defect analysis. This helps production personnel address defects promptly, preventing faulty products from moving to the next production stage.
4.4 Broad Adaptability
Optical and electron microscopes can adapt to various types of high-frequency PCBs, including multilayer structures, miniaturized components, and complex soldering designs, providing comprehensive quality inspection.
- Conclusion
Optical microscopes and electron microscopes are crucial in high-frequency PCB manufacturing. By providing high-precision images, they help inspect key aspects such as surface soldering quality, component installation, and interlayer connections. Electron microscopes offer finer structural analysis, particularly for examining micro-solder joints, vias, and internal soldering structures. As high-frequency PCB technology advances, optical and electron microscopes will continue to play a vital role in high-frequency PCB factories, providing strong support for producing high-quality, reliable high-frequency PCBs.
