What Is a High-Frequency PCB? A Complete Guide to High-Frequency Printed Circuit Boards
High-Frequency PCB technology has become one of the most critical foundations of modern RF and microwave electronics. As wireless communication systems continue evolving toward higher frequencies and faster data transmission rates, the demand for reliable High-Frequency Printed Circuit Boards is increasing rapidly across industries such as 5G communications, automotive radar, satellite communication, aerospace, and advanced IoT devices.
Unlike conventional FR-4 circuit boards, a High-Frequency PCB is specifically engineered to support stable signal transmission above 1 GHz while minimizing insertion loss, signal distortion, impedance discontinuities, and electromagnetic interference (EMI).
Why Do High-Frequency Signals Require Specialized PCBs?
Traditional PCBs perform well in low-frequency digital systems. However, as operating frequencies move into the microwave and millimeter-wave spectrum, standard PCB materials begin to exhibit significant limitations.
Common challenges include:
- Increased signal attenuation
- Higher dielectric loss
- Impedance mismatch
- Signal reflections
- Crosstalk between traces
- Reduced EMC performance
For example, modern 5G systems operate at frequencies such as 3.5 GHz and millimeter-wave bands above 24 GHz. At these frequencies, even minor variations in dielectric constant or copper surface roughness can significantly impact signal quality.
A dedicated High-Frequency PCB is designed to overcome these challenges by using low-loss materials, precision impedance control, and optimized manufacturing processes.
Key Characteristics of a High-Frequency PCB
1. Low-Loss High-Frequency Materials
Material selection is the most important factor in RF PCB performance.
Common high-frequency materials include:
| Material Type | Representative Materials | Typical Applications |
|---|---|---|
| PTFE-Based | Rogers RT/duroid®, Taconic TLX | Satellite, Aerospace, Millimeter-Wave Radar |
| Hydrocarbon Ceramic | Rogers RO4350B, RO4003C | 5G Base Stations, Automotive Radar |
| Modified Epoxy | Panasonic Megtron, Isola Astra | High-Speed Digital and RF Applications |
| Ceramic-Filled Laminates | Rogers RO3003 Series | Precision Microwave Circuits |
Material Selection Criteria
Key electrical properties include:
- Dielectric Constant (Dk) – Controls signal propagation speed.
- Dissipation Factor (Df) – Determines signal loss.
- Moisture Absorption
- Thermal Stability
- Coefficient of Thermal Expansion (CTE)
For detailed material specifications, engineers often refer to manufacturer documentation from Rogers Corporation and industry standards published by IPC.
Manufacturing Requirements for High-Frequency PCBs
Compared with standard PCB fabrication, high-frequency PCB manufacturing requires tighter process control.
Precision Impedance Control
Most RF systems require:
- 50Ω single-ended impedance
- 100Ω differential impedance
- Tolerance within ±5%
- Millimeter-wave designs may require ±3%
Trace Width Accuracy
High-frequency transmission lines require extremely accurate geometry.
Typical manufacturing requirements include:
- Trace width tolerance: ±0.02 mm
- Precise dielectric thickness control
- Tight layer registration
Surface Finishing
Surface treatment significantly affects RF performance.
Popular options include:
- Immersion Silver
- OSP (Organic Solderability Preservative)
- ENIG (Electroless Nickel Immersion Gold)
For microwave and millimeter-wave applications, immersion silver is often preferred because it introduces lower conductor loss than ENIG.
High-Frequency PCB Applications
5G Communication Systems
5G base stations use RF PCBs in:
- Antenna arrays
- Power amplifiers
- RF front-end modules
- Beamforming networks
High-frequency laminates ensure low insertion loss and stable signal phase characteristics.
Additional RF design resources are available from the IEEE Microwave Theory and Techniques Society.

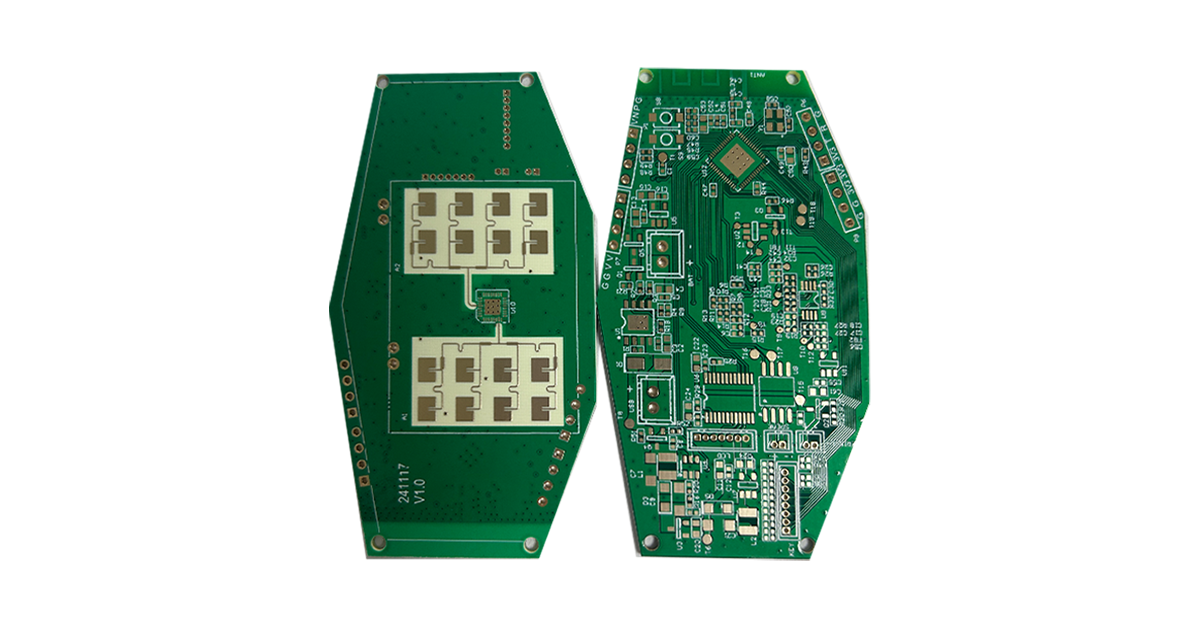

Automotive Radar
Modern ADAS systems rely heavily on:
- 24 GHz radar
- 77 GHz radar
- 79 GHz radar
High-frequency PCBs provide stable signal transmission between antennas and radar processing units.
Satellite Communication
Satellite systems often operate in:
- Ku-band (12–18 GHz)
- Ka-band (26–40 GHz)
Low-loss RF substrates are essential for maintaining signal integrity over long transmission distances.
Aerospace and Defense
Applications include:
- Military communication systems
- Electronic warfare equipment
- Phased-array radar
- Satellite payload systems
These applications demand exceptional reliability under extreme environmental conditions.
High-Speed Networking Equipment
Data centers increasingly utilize:
- 100G Ethernet
- 400G Ethernet
- AI server interconnects
Many of these systems combine high-speed digital and RF design principles, making low-loss PCB materials increasingly important.
Major Design Challenges of High-Frequency PCBs
Signal Integrity
Engineers must carefully manage:
- Reflection
- Crosstalk
- Insertion loss
- Return loss
- EMI
Simulation tools such as HFSS and CST are commonly used during development.
Material Cost
Premium RF materials such as PTFE laminates may cost several times more than standard FR-4.
A popular solution is hybrid stack-up construction:
- RF layers use Rogers or PTFE materials
- Remaining layers use FR-4
This approach balances performance and cost.
Manufacturing Complexity
High-frequency PCB fabrication requires:
- Precision drilling
- Tight registration control
- Advanced impedance verification
- Specialized lamination processes
Manufacturers with extensive RF PCB experience typically achieve higher yields and more consistent electrical performance.
Why High-Frequency PCBs Matter
As wireless communication technologies continue advancing toward higher frequencies and greater bandwidth, the importance of High-Frequency Printed Circuit Boards continues to grow.
Whether in 5G infrastructure, automotive radar, satellite communication, aerospace electronics, or AI networking equipment, a well-designed High-Frequency PCB provides the low-loss, stable, and interference-resistant signal path required for modern RF systems.
Selecting the right material, controlling impedance accurately, optimizing stack-up design, and partnering with an experienced RF PCB manufacturer are all essential steps toward achieving reliable high-frequency performance.
Q&A: High-Frequency PCB Design Guide
What frequency range is considered a High-Frequency PCB?
Generally, PCBs operating above 1 GHz are classified as high-frequency PCBs. Microwave applications often exceed 10 GHz, while millimeter-wave systems may operate above 30 GHz.
What is the best material for a High-Frequency PCB?
The ideal material depends on the application. Rogers RO4350B is widely used for 5G and radar applications, while PTFE-based materials such as Rogers RT/duroid are preferred for ultra-low-loss microwave designs.
Why is dielectric constant (Dk) important?
Dk determines signal propagation speed and impedance characteristics. A stable Dk helps maintain signal integrity across different frequencies and environmental conditions.
Which surface finish is best for RF PCBs?
Immersion Silver and OSP generally introduce lower RF loss than ENIG, making them popular choices for high-frequency and microwave applications.
Can FR-4 be used for High-Frequency PCB designs?
FR-4 can be used for lower-frequency RF applications, typically below 6–10 GHz. For higher frequencies, specialized low-loss materials such as Rogers or PTFE are recommended.
What industries use High-Frequency PCBs?
Major industries include 5G Telecommunications, Automotive Radar, Satellite Communication, Aerospace and Defense, Industrial Radar, IoT Devices, and High-Speed Networking Equipment.
