Maritime and aerospace represent two major frontiers of human exploration and boundary expansion. Both fields face the planet’s most severe challenges: drastic temperature fluctuations, corrosive high-humidity and high-salt environments, intense vibration and shock, and the near-vacuum of space. Under such extreme conditions, the reliability of electronic systems is directly tied to mission success and personnel safety. As the “neural network” of these electronic systems, the performance of high-frequency circuit boards is paramount. The Rogers 5880 high-frequency circuit board, with its unique combination of properties, has become an indispensable core foundational material in the maritime and aerospace sectors, providing critical technological support for conquering these extreme environments.
I. A Perfect Match: Stringent Requirements and Exceptional Performance – Why 5880?
Maritime and aerospace applications impose near-tough demands on high-frequency PCBs, and the characteristics of Rogers 5880 meet them point by point:
Ultra-Low Loss and Signal Integrity: In satellite communications and radar detection, signals must travel extremely long distances. Any loss in the substrate material leads to signal attenuation, potentially degrading communication quality or causing target echoes to be lost in noise. The extremely low dissipation factor (0.0009) of 5880 preserves signal strength to the maximum extent, ensuring long-distance, high-fidelity information transmission.
Stable Dielectric Constant: Spacecraft in orbit experience temperature cycles from hundreds of degrees Celsius on the sun-facing side to hundreds of degrees below zero on the shaded side. Marine electronics also operate from ambient to high temperatures. The dielectric constant of ordinary materials drifts significantly with temperature, causing circuit frequency and phase inaccuracies. The exceptional temperature stability of 5880 ensures highly consistent electrical performance over a wide temperature range, forming the foundation for system stability in complex thermal environments.
Low Moisture Absorption and Environmental Reliability: The marine environment features high humidity and salt content. Substrate moisture absorption can significantly increase loss and pose a risk of delamination (“popcorning”) during reflow soldering. While space is a vacuum, the terrestrial preparation phase before launch also faces humidity challenges. The low moisture absorption of 5880 guarantees its performance stability and long-term reliability in humid conditions.

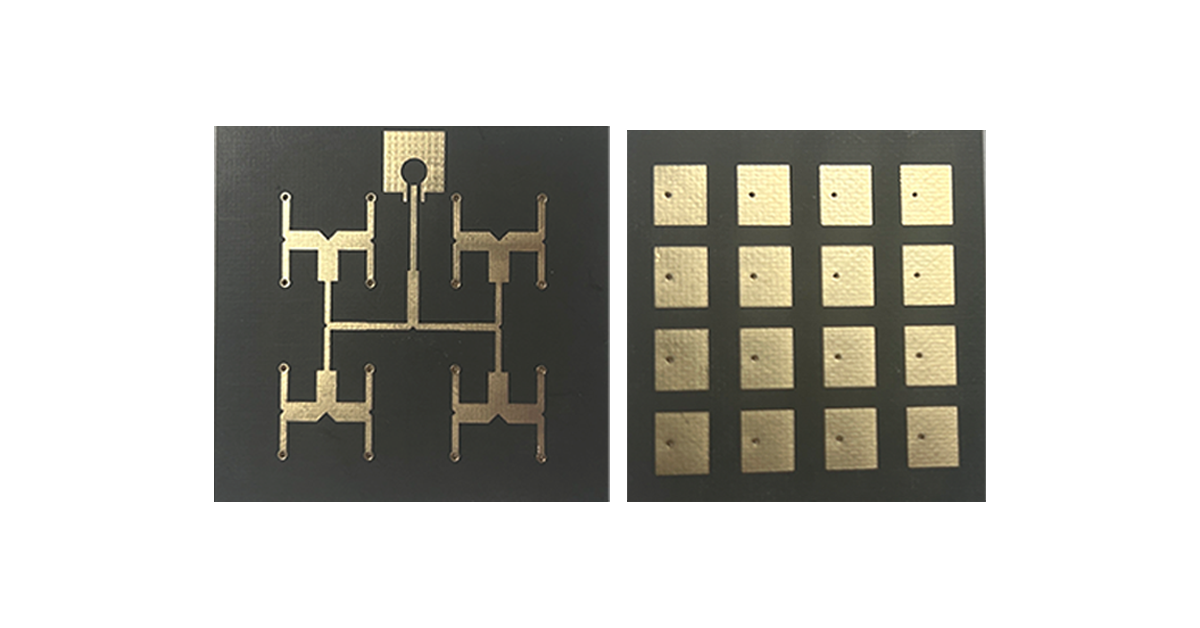

Consistent Isotropy: In phased array radars and satellite communication antennas, hundreds or thousands of antenna elements must work in concert. The isotropic nature of 5880 ensures consistent electromagnetic wave propagation speed in all directions within the board’s plane. This is the physical prerequisite for precise beam control and consistent phase response.
II. Braving the Waves: Core Applications of Rogers 5880 in the Maritime Domain
In modern naval vessels, especially high-performance warships and research ships, the 5880 is the “unsung hero” in many critical systems.
Shipborne Phased Array Radar Systems
Application Scenario: Modern destroyers, frigates, and other major vessels are commonly equipped with multifunctional phased array radars responsible for air and surface search, target tracking, and missile guidance.
Role of 5880: As the substrate material for the radar antenna array, the stability and low loss of 5880 ensure the radar can generate high-energy beams with precise shape and stable direction. This is crucial for achieving over-the-horizon detection, high-precision tracking, and engaging multiple targets simultaneously in complex sea states and electromagnetic environments, directly enhancing the vessel’s situational awareness and offensive/defensive capabilities.
Satellite Communication Terminals
Application Scenario: Ships on ocean voyages require uninterrupted communication links with shore-based command centers via maritime satellites.
Role of 5880: Used in the high-frequency feed network of stabilized satellite antennas (e.g., VSAT), the performance of 5880 ensures stable communication links and high-speed data transfer while the ship moves, guaranteeing unimpeded command and real-time information sharing.
Electronic Warfare Systems
Application Scenario: The self-protection of military vessels relies on Electronic Warfare (EW) systems for detecting, identifying, and jamming enemy radar and guidance signals.
Role of 5880: In the receive and transmit modules of EW equipment, the high-frequency performance of 5880 enables the system to rapidly and accurately capture and analyze very weak high-frequency signals and generate high-purity jamming signals, effectively executing soft-kill measures in the electromagnetic spectrum.
III. Soaring Through the Heavens: Cutting-Edge Applications of Rogers 5880 in the Aerospace Domain
In the aerospace sector, where reliability requirements are paramount, the value of 5880 is even more pronounced.
Satellite Payloads – Communication and Data Transmission Systems
Application Scenario: The core of various satellites (communication, navigation, remote sensing) is their payload – the equipment performing the specific mission, such as transponders and data transmitters.
Role of 5880: In satellite communication transponders and high-speed data transmission systems, 5880 is used to fabricate power amplifiers, low-noise amplifiers, and filters operating at high frequencies like Ka, Ku bands. Its low loss improves overall system efficiency, and its stability ensures communication parameters remain stable over an orbital lifespan of 15 years or more, preventing communication outages or data errors due to performance drift.
Spaceborne Synthetic Aperture Radar
Application Scenario: SAR satellites can perform high-resolution Earth imaging unaffected by weather or day/night cycles, widely used in military reconnaissance, resource survey, and disaster monitoring.
Role of 5880: SAR systems have extremely high requirements for signal phase coherence. 5880 is an ideal material for manufacturing SAR antenna arrays. It ensures high phase coherence for every transmitted pulse and received echo, which is key to generating high-precision, high-resolution radar imagery.
Seekers and Spacecraft Telemetry, Tracking, and Control
Application Scenario: Precision guidance seekers for missiles; TT&C (Telemetry, Tracking, and Command) communication systems for crewed spacecraft and space stations.
Role of 5880: In the active radar systems of missile seekers, 5880 ensures the stable operation of miniaturized, lightweight radars in harsh environments, enabling precise target lock-on. In spacecraft TT&C systems, it guarantees the ultra-high reliability of telemetry, telecommand, and communication signals with ground stations, safeguarding astronaut lives and mission success.
IV. Beyond the Material: Strategic Value and Future Outlook
The application of Rogers 5880 in the maritime and aerospace fields has transcended its value as a single component, rising to a strategic level:
It Guarantees Performance: On spacecraft that cannot be easily repaired and on long-voyage vessels, the inherent reliability of the material determines the subsequent reliability of the system.
It Forms the Foundation for System Innovation: It is precisely with high-performance materials like 5880 as a base that engineers dare to design and realize more complex, higher-performance radar and communication systems, driving technological progress across the industry.
Looking ahead, with the intensive deployment of future LEO satellite internet constellations, the continued advancement of deep space exploration, and the modernization of naval assets, the demand for high-performance, high-reliability high-frequency PCBs will grow explosively. Rogers 5880, as a proven, mature material validated by long-term practice, is destined to continue playing its irreplaceable key role on the broader maritime and aerospace stage, safeguarding humanity’s grand journey of exploring the oceans and the cosmos.
