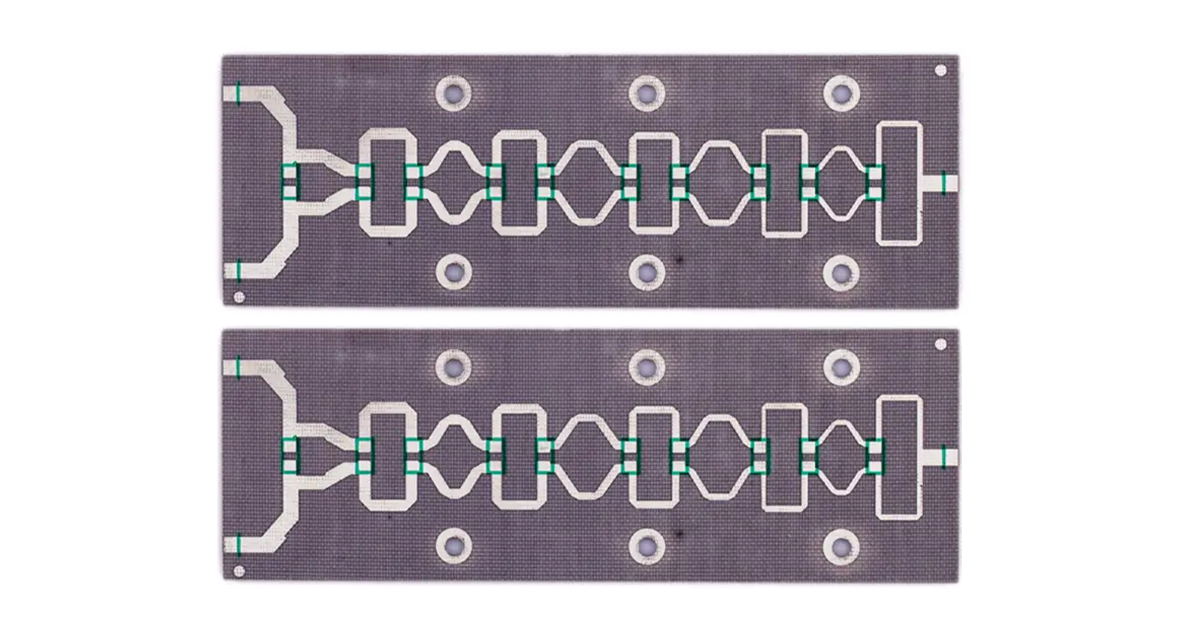

In the high-speed train of the information age, cutting-edge technologies like 5G communication, aerospace, autonomous driving, and millimeter-wave radar are rapidly advancing. All of this relies on a fundamental yet critical core component: the high-frequency printed circuit board (PCB). Acting like a complex highway interchange in a city, it is responsible for carrying and transmitting high-frequency signals. Its performance directly determines the stability and efficiency of the entire system. The manufacturing of high-frequency PCBs is a top-tier craft that integrates materials science, fine chemistry, and precision mechanical processing. The production process is interlinked, where even a slight deviation in any single stage can lead to a sharp decline in overall performance. This article provides a detailed analysis of the crucial stages in the high-frequency PCB manufacturing process and elaborates on their core functions.
Stage 1: Substrate Selection – Laying the Foundation for High Performance
The production of high-frequency PCBs begins not with machining, but with a deep understanding and precise selection of materials. This is the “first step” and the most fundamental one.
Core Function: Standard FR-4 epoxy glass fiber substrates have high dielectric loss (Df) at high frequencies, leading to significant signal attenuation. Therefore, high-frequency boards must use special low-loss materials, such as Polytetrafluoroethylene (PTFE), ceramic-filled hydrocarbon materials, or modified epoxy resins. These materials share the characteristics of a stable and consistent Dielectric Constant (Dk) and an extremely low Dissipation Factor (Df). A stable Dk ensures constant signal propagation velocity, while a very low Df minimizes energy loss during signal transmission, guaranteeing signal integrity and transmission distance.
Key Considerations: When selecting a substrate, its Coefficient of Thermal Expansion (CTE) must be considered to ensure it matches the copper foil, preventing stress-induced delamination during thermal cycling. Furthermore, the material’s heat resistance and moisture absorption are critical metrics, directly impacting the reliability of subsequent lamination and soldering processes, as well as long-term stability.
Stage 2: Inner Layer Imaging – The Art of “Engraving” Precision Circuits
The inner layer traces are the “paths” for signal transmission; their precision directly determines the accuracy of impedance control and signal integrity.
Core Function: This stage transfers the designed circuit pattern onto the copper-clad laminate through processes like exposure, development, and etching. For high-frequency boards, precise control of line width and spacing is paramount. This is because characteristic impedance (e.g., 50 or 75 ohms) is closely related to line width, dielectric thickness, and Dk. Even micron-level deviations in line width can cause impedance mismatch, leading to signal reflection and distortion.
Key Technical Points:
Fine Line Imaging: High-resolution Laser Direct Imaging (LDI) technology is often used instead of traditional film-based exposure to reduce the effects of light diffraction and achieve finer, more accurate pattern transfer.
Controlled Etching: Etching parameters must be precisely controlled to minimize the “undercut” effect, ensuring the trace cross-section is as close to a perfect rectangle as possible, thus guaranteeing the actual line width matches the design value.
Stage 3: Lamination – Constructing a Stable Multi-Layer “Structure”
Multi-layer high-frequency boards require lamination to bond multiple inner layer cores and prepreg (PP) sheets into a solid whole. This is a critical step for forming the physical structure.
Core Function: Lamination not only bonds the layers together but also determines the board’s layer-to-layer registration, dielectric layer thickness, and overall reliability. Uniform and precise dielectric layer thickness is another key factor for consistent impedance.
Key Technical Points:
Stack-up Design: The layer stack-up must be meticulously calculated before lamination, including the type, number, and arrangement of PP sheets, to precisely control the final thickness and resin content.
Cleanliness and Registration: Any tiny dust particles between layers can cause blisters or delamination after lamination, necessitating operation in an ultra-clean environment. Registration holes between layers must be perfectly aligned to prevent misregistration.
Temperature-Pressure Profile Control: The heating rate, pressure level, and application timing must be optimized based on the material properties. An improper profile can lead to uneven resin flow, layer shifting, or poor resin cure, severely affecting product quality.
Stage 4: Drilling and Hole Metallization – Building Reliable Interlayer “Bridges”
Plated Through-Holes (PTHs or Vias) are the pathways enabling electrical connections between different signal layers. Their quality is crucial for the board’s interconnection reliability.
Core Function: Drilling creates the holes for these “bridges,” while hole metallization (e.g., electroless copper deposition, copper electroplating) deposits a conductive copper layer on the non-metallic hole walls, making them electrically conductive.
Key Technical Points:
High-Quality Drilling: Drilling high-frequency materials (especially soft PTFE) can easily cause drill smear and burrs. High-precision CNC drilling machines and new drill bits are required, along with optimized drilling parameters, to achieve smooth, clean hole walls.
Thorough Hole Wall Activation: Activating the hole walls is a key challenge for inert materials like PTFE. Plasma treatment or specialized chemical solutions are used for thorough activation and cleaning, ensuring strong adhesion between the electroless copper and the hole wall, thereby avoiding the critical defect of later copper-to-substrate separation.
Uniform Copper Plating: The copper plating inside the holes must be uniform, dense, and free of voids or cracks to ensure current-carrying capacity and mechanical strength.
Stage 5: Surface Finish – “Protective Clothing” for the Circuit
After all machining is complete, the exposed copper pads undergo a surface finish process. This is the final major step before the PCB leaves the factory.
Core Function:
Oxidation Prevention: Protects the copper surface from oxidizing before storage and assembly, maintaining excellent solderability.
Ensuring High-Frequency Performance: Due to the “skin effect” of high-frequency signals, current flows concentrated on the conductor surface. Therefore, the conductivity and smoothness of the surface finish layer itself directly impact the signal’s insertion loss. Common processes include Electroless Nickel Immersion Gold (ENIG), Immersion Silver, and Immersion Tin, each with pros and cons. For example, ENIG offers a flat surface and good stability, but the nickel layer can introduce additional loss; Immersion Silver offers excellent high-frequency performance but is prone to tarnishing.
Selection Basis: The choice depends on a comprehensive consideration of the product’s operating frequency, soldering method, storage life, and cost.
Stage 6: Rigorous Testing and Inspection – The Final “Goalkeeper” for Quality
The complexity of high-frequency PCBs necessitates extremely comprehensive and stringent testing.
Core Function: To ensure that every board shipped meets the design specifications and customer requirements 100%.
Key Test Items:
Electrical Testing: Continuity and isolation (short/open) testing is performed using flying probe testers or dedicated test fixtures to ensure no shorts or opens exist.
Impedance Testing: Time Domain Reflectometry (TDR) is used to perform impedance testing on controlled impedance lines (sampled or 100%) to ensure values are within tolerance (typically ±10%).
High-Frequency Performance Testing (if required): For critical products, a Vector Network Analyzer (VNA) may be used to test S-parameters (e.g., Insertion Loss, Return Loss), directly verifying performance at high frequencies.
Reliability Inspection: Includes microsectioning analysis to examine internal layer structure, hole copper quality, etc.
Conclusion
The production of high-frequency PCBs is a systematic project defined by relentless pursuit of perfection throughout. From the “careful selection” of substrates, to the “meticulous engraving” of inner layers, the “precise control” of lamination, the “reliable connection” of hole metallization, the “final touch” of surface finishing, and the “keen-eyed” final testing, each stage embodies profound process know-how. Only through a deep understanding of material properties, precise control of every process parameter, and stringent, full-process quality management can manufacturers consistently produce high-performance, high-reliability high-frequency PCBs that meet the demands of advanced applications. This, in turn, empowers clients to achieve victory from afar in the intense competition of technology.
