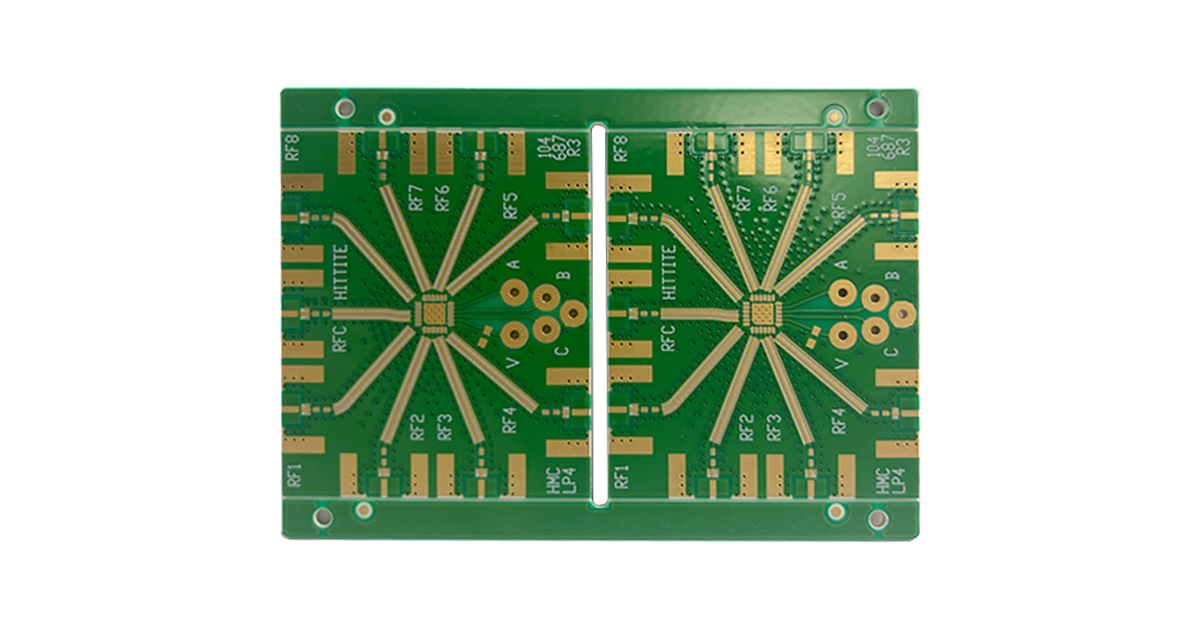

In high-frequency circuit design, material selection is the primary determinant of a product’s ultimate performance success. When operating frequencies reach GHz levels, conventional FR-4 laminates can no longer meet requirements due to their significant loss and instability, compelling engineers to seek more specialized solutions. Among the numerous high-end high-frequency laminate brands, Rogers Corporation stands out as a leader, and its RO3000 series products have become essential core materials in cutting-edge fields such as 5G communications, automotive radar, and aerospace remote sensing, thanks to their outstanding balance of performance, manufacturability, and cost. This article provides a detailed exploration of the unique advantages and technical specifics of the RO3000 series laminates.
I. Series Positioning: The Pinnacle of Ceramic-Filled PTFE Composite Materials
The RO3000 series is not based on traditional epoxy resins nor pure polytetrafluoroethylene (PTFE). It is an innovative ceramic-filled PTFE composite material. This unique composite system grants it dual advantages: it inherits the inherently ultra-low loss characteristics of PTFE while significantly enhancing mechanical strength and thermal stability compared to pure PTFE through ceramic filling. Its market positioning is clear: to offer the optimal solution for high-end commercial applications that demand high-frequency stability and extremely low signal loss, while also requiring feasibility for mass production and cost control. It serves as a critical bridge connecting top-tier laboratory performance with factory-scale manufacturing.
II. Core Material Characteristics and Advantages
The exceptional performance of the RO3000 series is demonstrated through the following key metrics:
Exceptionally Stable and Predictable Dielectric Constant (Dk): The Dk values of laminates in this series are highly consistent and stable. For example, the star model RO3003™ has a nominal Dk of 3.00, with minimal variation across frequencies (from 10 GHz to millimeter-wave bands) and under changing temperature conditions. This stability is vital for ensuring precise impedance control, enabling engineers to accurately predict final circuit performance during the design phase and significantly reducing uncertainties in post-production debugging.
Outstanding Low-Loss Performance (Low Df Value): The Dissipation Factor (Df) is a key indicator of signal energy loss. The RO3000 series boasts remarkably low Df values; for instance, the typical Df value for RO3003™ at 10 GHz is only 0.0013. This means that when electromagnetic waves propagate through the laminate, very little energy is converted into heat loss, ensuring high signal transmission efficiency and integrity. This is particularly important for long-distance transmission or high-power applications, as it effectively reduces system power consumption and simplifies thermal management.
Superior Thermal Management Performance and Reliability:
Low Z-Axis Coefficient of Thermal Expansion (CTE): The thermal expansion coefficient of RO3000 series laminates in the thickness direction (Z-axis) is very close to that of copper foil. This ensures that during high-temperature processes (e.g., reflow soldering) or operational temperature fluctuations, the expansion and contraction of the laminate and copper conductors remain largely synchronized, minimizing stress on plated through-holes (PTH) and preventing hole wall fractures, thereby enhancing long-term product reliability.
High Thermal Conductivity: Compared to traditional FR-4, the RO3000 series offers higher thermal conductivity, facilitating rapid dissipation of heat generated by power components in the circuit, preventing localized overheating, and improving the overall assembly’s power handling capacity and lifespan.
III. Excellent Manufacturability: Processing Technology Comparable to FR-4
This is a significant advantage of the RO3000 series over higher-end lines like the RT/duroid® series. Pure PTFE materials (e.g., RT/duroid 5880) require complex plasma treatments or chemical etching to activate hole walls for reliable metallization, greatly increasing process complexity and cost.
In contrast, the RO3000 series does not require such specialized surface treatments. It can be processed using standard FR-4 PCB manufacturing workflows, including:
Drilling: Delivers high-quality drilling with smooth hole walls, avoiding fraying issues common with PTFE materials.
Hole Metallization: Standard chemical copper deposition (PTH) processes can be applied directly, ensuring reliable hole wall adhesion.
Pattern Transfer and Etching: Utilizes etching processes similar to FR-4, achieving precise line widths and clean circuit edges.
Lamination: Exhibits excellent lamination compatibility.
This manufacturing ease allows existing PCB producers to quickly adopt the technology without major investments in equipment upgrades or mastering entirely new processes, significantly lowering barriers to mass production and overall costs.
IV. Primary Models and Their Typical Applications
The RO3000 series includes several models tailored to diverse design requirements:
RO3003™ (Dk=3.00 ± 0.04): The most widely used and popular model in the series. Its ultra-low loss (Df=0.0010 @ 10 GHz) and stable dielectric constant of 3.0 make it the preferred choice for many applications.
Applications: 5G base station Massive MIMO antenna arrays, 77/79 GHz automotive collision avoidance radar (ADAS), point-to-point microwave communication links, satellite communication downlinks, high-performance RF identification tags.
RO3006™ (Dk=6.15 ± 0.15): The higher dielectric constant enables designers to achieve smaller circuit sizes at the same frequency (wavelength is inversely proportional to the square root of Dk). This is particularly advantageous for miniaturized passive components.
Applications: Compact power dividers, couplers, filters, LC load oscillators, miniaturized antennas.
RO3010™ (Dk=10.2 ± 0.25): The very high Dk value allows for extreme circuit miniaturization, ideal for space-constrained scenarios.
Applications: Miniature GPS antennas, military-grade miniaturized RF modules, communication units for medical implant devices.
RO3035™ (Dk=3.50 ± 0.05): A key feature of this material is its ability to withstand lead-free soldering temperatures up to 300°C, making it highly suitable for complex surface-mount technology (SMT) assemblies requiring multiple reflow cycles.
Applications: RF front-end modules with numerous BGA components, complex multilayer boards needing multiple assembly stages.
Conclusion
Through its unique materials science design, Rogers’ RO3000 series high-frequency laminates successfully combine top-tier high-frequency electrical performance with excellent mechanical processability. It is no longer an expensive laboratory prototype but a widely adopted critical component behind many advanced technological products in everyday life. Whether in the smart radar of a high-speed vehicle or the 5G signal towers connecting the world, their core functionalities likely operate on the “high-speed pathways” built using RO3000 series laminates. For design engineers striving for high performance, reliability, and efficient mass production, deeply understanding and effectively leveraging the RO3000 series is undoubtedly a key to developing successful products.
