ENIG, Plated Gold, DIG, Thick Gold, Thin Gold—What’s the Difference?

Home / PCB Resources / ENIG, Plated Gold, DIG, Thick Gold, Thin Gold—What’s the Difference?
Table of Contents

Gold Surface Finishes for Hardware, RF, PCB & Microassembly Engineers

Gold surface finishes can be extremely confusing:
ENIG, plating gold, nickel-gold, immersion gold, thick gold, thin gold, palladium-gold, DIG…
One tiny difference in name leads to huge gaps in cost, reliability, high-frequency performance, solderability, and bondability.


I will break down every finish clearly:
Name → Structure → Process → Pros & Cons → Applications → Restrictions → Cost.
After reading, you will never choose wrong again.

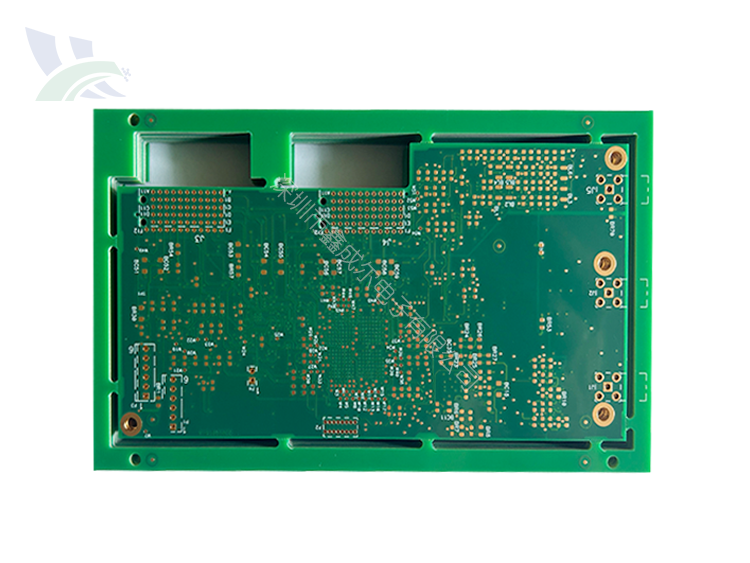

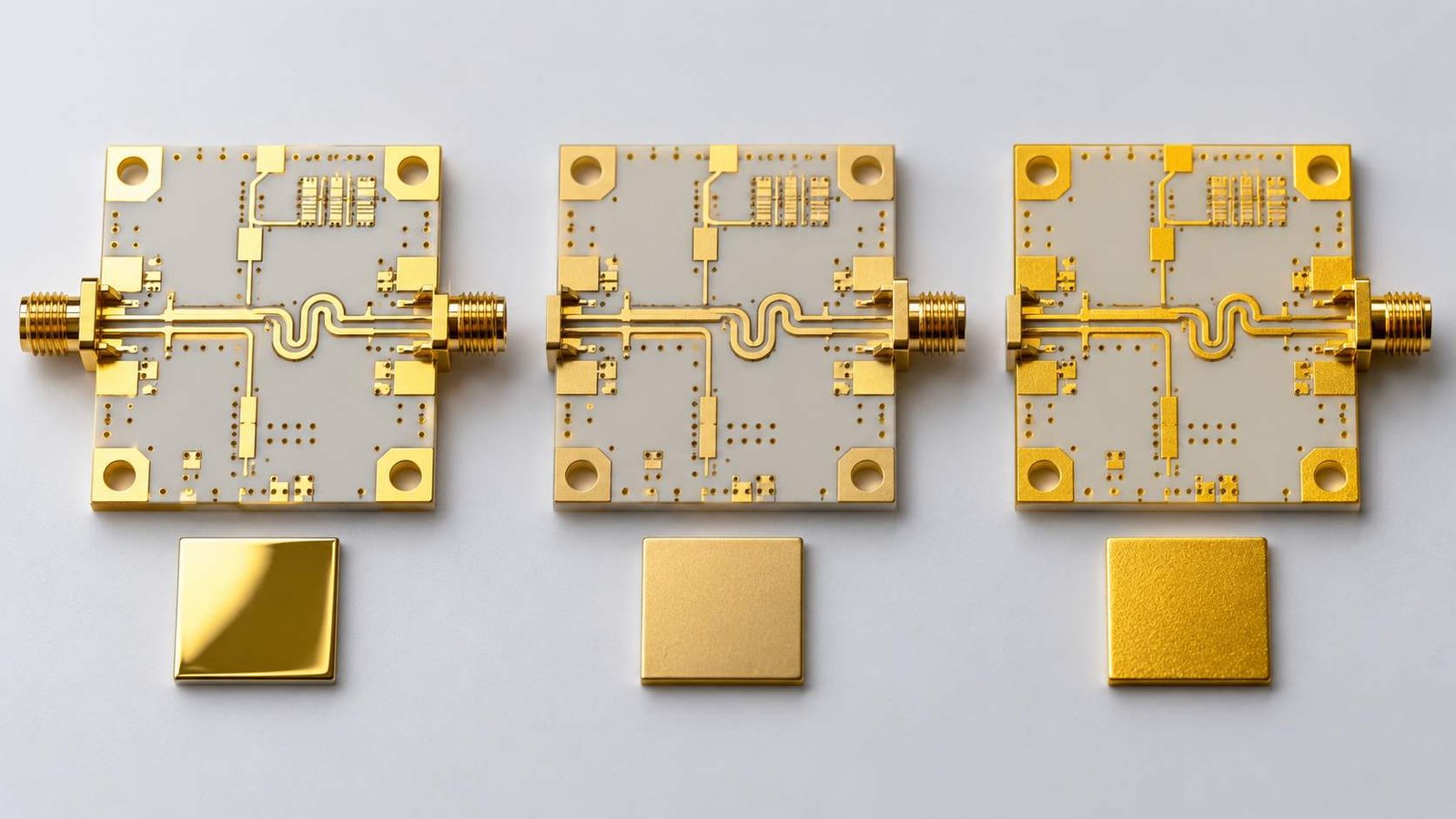

  1. Two Basic Categories of Gold Finishes

All gold processes fall into just two types:

1. Chemical Gold (ENIG / Immersion Gold)
No electricity, chemical deposition only
→ Excellent flatness, ideal for BGA.
2. Electroplated Gold (Hard Gold / Soft Gold)
Electroplating with current
→ Thick, wear-resistant, suitable for bonding & contacts.

Nickel-gold, palladium-gold, thick gold, thin gold are all sub-types.

  1. ENIG (Electroless Nickel Immersion Gold)

Common names: Immersion Gold, ENIG, Chemical Gold, Nickel-Gold

Structure

Cu → Electroless Ni (3–5 μm) → Au (0.05–0.1 μm)

Key Features

  • Extremely flat, perfect for BGA / QFN / fine-pitch ICs
  • Stable soldering, low voiding
  • Long shelf life
  • Medium cost, mainstream for mass production

Critical Disadvantage (For RF & High Frequency)

CONTAINS NICKEL.
Nickel is ferromagnetic (μr ≈ 100–600), conductivity only 1/4 of copper.

At high frequency, skin effect causes signals to penetrate thin gold into the nickel layer, causing:

  • Hysteresis loss
  • Eddy current loss
    Loss explodes at higher frequencies.

RF / mmWave boards MUST avoid ENIG.

Performance Data (Microstrip)

  • 1 GHz: Insertion loss 40–80% higher than copper
  • 10 GHz: Loss 100–200% higher
  • 28 GHz / 77 GHz: Loss 3–5x higher

Applications & Restrictions

  • Use: Consumer electronics, BGA, high-volume production
  • Avoid: RF, high-frequency, mmWave, connectors, gold fingers
  1. ENEPIG (Electroless Nickel Electroless Palladium Immersion Gold)

Common names: Palladium Gold, ENEPIG, Black-Pad-Free ENIG

Structure

Cu → Ni → Pd (0.05–0.1 μm) → Au

Key Features

  • Eliminates black pad issues
  • Extremely high reliability
  • Cost: 30–50% higher than ENIG

RF Performance

Still contains nickel → still very high RF loss.
Only reliability improves; RF performance does NOT.

Applications & Restrictions

  • Use: Automotive, medical, military, high-reliability
  • Avoid: RF, high-frequency boards
  1. Electroplated Gold (Plated Gold, Thick Gold, Thin Gold)

Common names: Gold Plating, Electroplated Gold

Standard Structure

Cu → Electroplated Ni (5–8 μm) → Electroplated Au (0.1–3 μm)

Important Fact:

All standard PCB electroplated gold contains nickel.
Nickel is required for adhesion and as a barrier layer.
Gold without nickel is DIG, not plating gold.

Thick Gold vs Thin Gold

  • Thin Gold: 0.1–0.3 μm, low cost, test points, simple gold fingers
  • Thick Gold: 0.5–3 μm, used for wire bonding

Hard Gold vs Soft Gold

  • Hard Gold (Co-doped): Wear-resistant → connectors, contacts
  • Soft Gold (Pure): For wire bonding → die bonding

Why Plated Gold Is Bad for RF?

NOT the gold — THE NICKEL.
Even thin gold still has a nickel layer, causing massive RF loss.

Why Thick Gold Is Bad for SMT?

  • Poor wettability
  • Forms brittle Au-Sn IMCs
  • Poor flatness → BGA head-in-pillow issues

Thick gold = for bonding only, NOT soldering.

Recommended for RF/Microassembly

  • Bonding pads: Local thick gold plating
  • RF traces: NO gold plating — use OSP, Immersion Ag, or DIG
  • If full-board plating is mandatory: use ultra-thin gold (0.05–0.1 μm)
  1. DIG (Direct Immersion Gold) — RF-Specialized

Common names: DIG, Nickel-Free Gold, Pure Immersion Gold

Structure

Cu → Au
NO NICKEL, NO PALLADIUM.

Features

  • Best RF / mmWave performance
  • Good flatness
  • Very thin gold (0.02–0.05 μm)
  • Not bondable, not for contact/switch

Applications & Restrictions

  • Use: RF, microwave, mmWave, high-speed transmission lines
  • Avoid: Wire bonding, connectors, high-reliability harsh environments
  1. Other Common Surface Finishes

OSP (Organic Solderability Preservative)

  • Cu → organic coating
  • Nickel-free, lowest cost, excellent RF performance
  • Use: RF boards, low-cost, BGA
  • Avoid: Frequent contact / mating

HASL (Hot Air Solder Leveling)

  • Cu → Sn
  • Low cost, good solderability, poor flatness
  • Avoid: BGA, RF / high frequency

Immersion Silver

  • Cu → Ag
  • Nickel-free, excellent RF performance
  • Use: RF, high-frequency PCB
  • Avoid: Harsh environments (tarnish risk)

Immersion Tin

  • Cu → Sn
  • Nickel-free, flat, good solderability
  • Use: Low-cost high-frequency boards
  • Avoid: Extreme high-reliability
  1. Full Comparison Table (Copy-Paste Ready)

Surface Finish Common Name Structure Nickel? Flatness Solderability Bondability RF/HF Performance Typical Applications Restrictions
ENIG Immersion Gold Cu→Ni→Au Yes Very High Excellent No Poor (3–5x loss) BGA, Consumer Electronics RF, mmWave
ENEPIG Palladium Gold Cu→Ni→Pd→Au Yes Very High Excellent No Poor (Same as ENIG) Auto, Medical, Military RF, High Frequency
Electroplated Gold Plated Gold Cu→Ni→Au Yes Medium Poor Fair Poor Bonding, Gold Fingers Full-board, BGA
Thick Plated Gold Thick Gold Cu→Ni→Thick Au Yes Medium Very Poor Excellent Poor Wire Bonding RF Traces, Solder
Thin Plated Gold Thin Gold Cu→Ni→Thin Au Yes Medium Poor Fair Poor Test Points, Fingers RF Traces
DIG Direct Immersion Gold Cu→Au No High Good No Best (Near Cu) RF, mmWave Bonding, Mating
OSP Anti-Oxidation Cu→Organic No Very High Good No Best RF, Low Cost Contact, Mating
Immersion Ag Immersion Silver Cu→Ag No High Good No Best RF, High Frequency Harsh Environment
HASL Spray Tin Cu→Sn No Low Good No Poor Power, Through-Hole BGA, High Frequency
Immersion Sn Immersion Tin Cu→Sn No High Good No Excellent Low-Cost HF High-Reliability

  1. Final Summary (Must Remember)

1. ENIG = Nickel-Gold → contains Ni → NOT for RF
2. ENEPIG = more reliable, but still Ni → still bad for RF
3. Electroplated Gold = always Ni → high RF loss
4. Thick Gold = bonding only; Thin Gold = contacts only
5. DIG is the only Ni‑free gold → best for RF
6. Standard RF/Microassembly stackup:

  • RF Traces: DIG / Immersion Ag / OSP
  • Bonding Pads: Local thick gold plating
    7. Plated Gold ≠ DIG
  • Plated: Ni, thick, bondable
  • DIG: No Ni, thin, RF-only
    8. Nickel destroys high-frequency performance
    10 GHz: loss doubles
    mmWave: loss 3–5x higher
