Comprehensive Reliability Testing for High-Frequency PCBs: Key Standards from Impedance Control to Thermal Aging

Ensuring Reliability in 5G, Aerospace & Medical Applications

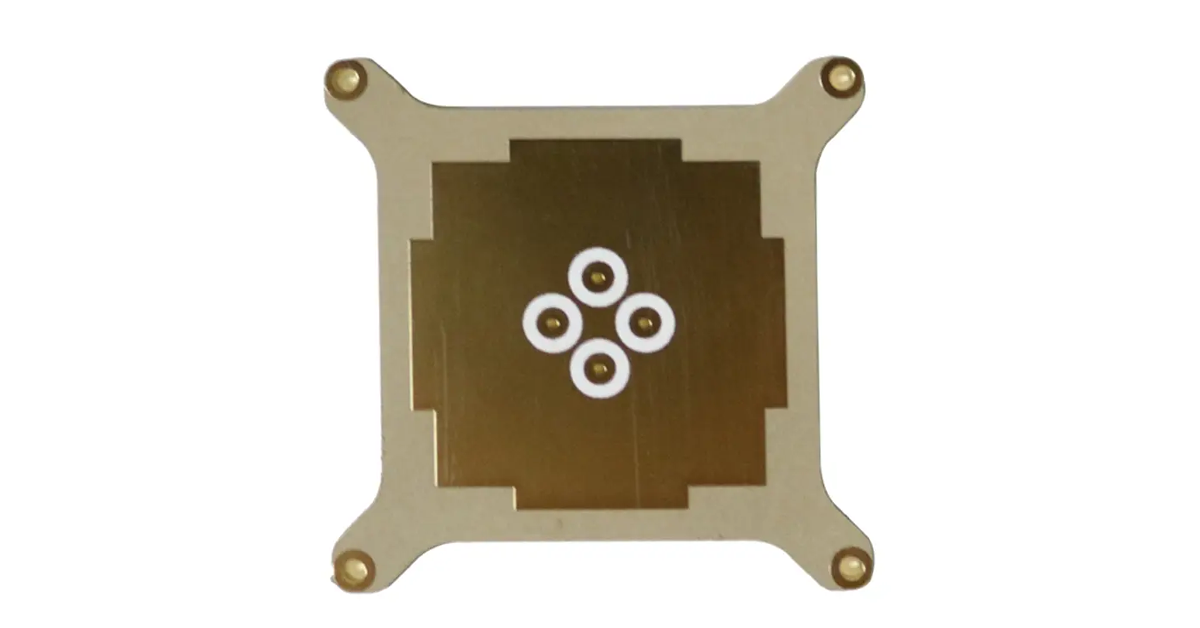

In mission-critical industries, high-frequency PCB reliability directly impacts system performance and longevity. Professional RF PCB manufacturers must implement rigorous testing protocols to guarantee gold-plated high-frequency boards maintain exceptional performance under extreme conditions. This guide details the complete reliability testing workflow from design to production.

Phase 1: Design Verification

Impedance Control Validation

• Vector Network Analyzer (VNA) Testing:
  • 50Ω/75Ω transmission line tolerance: ±5%
  • Frequency range covering operational bands (e.g., 28GHz/77GHz)
• 3D EM Simulation:
  • Models layer stackup effects
  • Predicts impedance discontinuities

Material Characterization

Phase 2: In-Process Quality Control

Pattern Transfer Inspection

• LDI Accuracy: ±5μm line width/spacing
• Etch Factor: ≥3.0 (35μm copper)
• ENIG Thickness:
  • Nickel: 3-5μm
  • Gold: 0.05-0.1μm

Plated Through-Hole Reliability

1. Backlight Test: Grade ≥9
2. Thermal Stress:
   • 288℃ solder float ×3 cycles
   • No blistering/delamination
3. Microsection Analysis:
   • Plating uniformity >80%
   • Resin smear <25μm

Phase 3: Final Product Validation

Environmental Testing

Long-Term Reliability

• High-Temp Aging: 125℃/2000h
• Power Cycling: Simulates 10-year usage
• Random Vibration: 20-2000Hz, 20Grms

RF Performance Verification

• Insertion Loss: ≤0.15dB/inch @110GHz
• Phase Matching: ±2° across channels
• Dielectric Withstanding: 1000V/60s

Supplier Qualification Checklist

Mandatory Certifications

✔ IPC-6012 Class 3
✔ ISO 13485 (Medical)
✔ AS9100 (Aerospace)

Facility Requirements

• RF Test Lab with:
  • 110GHz VNA
  • TDR (±0.5% accuracy)
• Thermal Imaging for hotspot detection

Data Management

• Full traceability of test results
• SPC for critical parameters

Industry-Leading Test Equipment
