In the rapidly advancing fields of 5G communications, cutting-edge radar systems, and aerospace, the speed, integrity, and reliability of signal transmission are paramount to unlocking ultimate device performance. This foundation often begins with a seemingly humble circuit board material. The Rogers RT/duroid 5880 high frequency circuit board, produced by Rogers Corporation, stands as a core material trusted and widely adopted by engineers for demanding RF and microwave applications. With its exceptional electrical properties and outstanding environmental stability, it serves as a critical bridge connecting theoretical design to practical application.
Exceptional Electrical Performance: Defining a New Standard for Low-Loss Transmission
The core value of RT/duroid 5880 lies in its superior electrical characteristics, which directly determine the quality of high-frequency signal transmission.
Firstly, it possesses an exceptionally low and stable dielectric constant (Dk). At the industry-standard test frequency of 10GHz, its Dk remains stable at 2.20 ± 0.02. This value is not only among the lowest in its class, but more importantly, its stability is remarkable: it remains nearly constant over a broad frequency range. This allows engineers to achieve highly predictable and consistent signal propagation speeds and impedance calculations during circuit design, forming the basis for precision microwave circuit components like filters and couplers.
Secondly, RT/duroid 5880 features an extremely low dissipation factor (Df), which can be as low as 0.0009 at 10GHz. The dissipation factor directly dictates the energy attenuation of a signal as it travels through the substrate. This remarkably low value indicates minimal energy loss absorbed by the material itself during signal transmission. This enables the design of high-Q value circuits, achieving steeper filter roll-offs and lower insertion loss. It is precisely this property that allows it to perfectly support applications from the Ku-band (12-18GHz) up to higher-frequency millimeter-wave (mmWave) uses, meeting the extreme demands of modern communications for bandwidth and efficiency.
Remarkable Environmental Stability: Reliable Assurance for Complex Challenges
Beyond its excellent electrical performance, the stability of RT/duroid 5880 in challenging environments is equally impressive.
First, it exhibits an extremely low moisture absorption rate of just 0.02%. Moisture is a primary factor that can alter a circuit board’s dielectric properties. In humid environments, common materials can experience shifts in dielectric constant and loss factor due to water absorption, severely impacting performance. The near-negligible moisture absorption of RT/duroid 5880 ensures long-term, stable performance for equipment deployed in outdoor communication base stations, aerospace vehicles, or high-humidity regions.
Second, the material demonstrates excellent physical and chemical stability. It is constructed from a composite of PTFE (polytetrafluoroethylene) reinforced with randomly oriented glass microfibers. This grants the material isotropic properties, meaning its electrical behavior is consistent in all directions. Furthermore, it shows good resistance to the various chemical solvents and agents used in printed circuit board (PCB) processing, such as etching and plating, facilitating reliable manufacturing and ensuring final product quality. This comprehensive stability makes it an ideal choice for high-reliability application fields.
Broad Application Spectrum: Powering Cutting-Edge Technology
Leveraging these characteristics, Rogers 5880 naturally becomes the material of choice in numerous high-technology sectors:

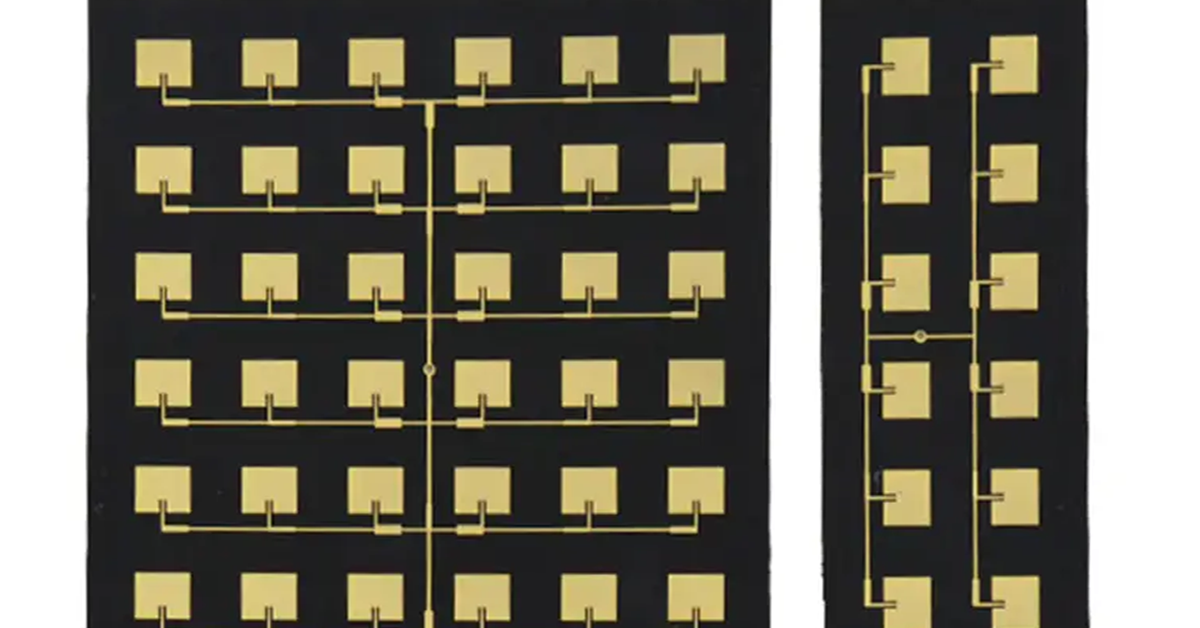

- Telecommunications Infrastructure: Its capability for low-loss, high-fidelity signal transmission is critical in point-to-point digital microwave radios, 5G base station antennas, and satellite communication systems.
- Aerospace and Defense Electronics: Its stable electrical performance and reliability under extreme conditions are essential for meeting the stringent requirements of military radar systems, missile guidance systems, and lightweight feed networks for airborne and spaceborne platforms.
- Advanced Commercial and Automotive Electronics: With the rise of autonomous driving, automotive collision avoidance radars (typically operating at 77GHz) place extremely high demands on a substrate’s high-frequency performance. The RT/duroid 5880 series, including its variants like the lower-Dk 5880LZ, provides robust support for such mmWave applications.
Model Selection and Processing Guidelines
It is important to note that the Rogers RT/duroid 5880 series includes both the standard model and the RT/duroid 5880LZ model. The latter employs unique filler technology to achieve an even lower dielectric constant (approx. 1.96) and reduced density. It is specifically designed for aerospace applications (e.g., spacecraft antennas) where minimal weight and an ultra-low dielectric constant are paramount.
Regarding fabrication, due to its PTFE-based substrate, the processing techniques—especially drilling and hole metallization—differ from those used for standard FR-4 epoxy laminates. To ensure the final product’s performance meets design expectations, it is strongly recommended that production be entrusted to manufacturers with proven expertise and mature processes in high-frequency, specialty PCB fabrication.
Conclusion
In summary, the Rogers RT/duroid 5880 high frequency circuit board is more than just an engineering material; it is a key enabling component driving progress in wireless communications, radar detection, and space technology. Its outstanding balance of low loss, high stability, and environmental resilience ensures it will continue to play an indispensable role in the evolving landscape of future technology, where frequencies continue to climb and applications grow more complex. For any engineer dedicated to designing high-performance, high-reliability RF electronic systems, a deep understanding and adept use of this material is undoubtedly a vital step toward successful design.
